Why should I choose a 6x7 roll film holder on a 4x5 camera? I mean, after carrying camera, lenses, filters, tripod, film, film hoders, loading tent, etc, etc, etc; and taken the time to place the tripod with the camera on top, focus, measure the light, decide which filter to use (if any), why should I produce a smaller format (6x7cm) and not a 4x5 in.?

    • To get more depth of field.
        It's more economical...
          Less volume (2 rolls or 10 sheetfilm holders)
            When you ran out of sheetfilm.(Backup)
              You will use the best part of the lens(Image circle)
                Larger variety of films available.

I'am sure there are many more reasons...
Below you find some possibilities in several formats.

Actually there are two types:
# 1 Roll film backs are "graflock" style.
# 2 Roll film backs are "Springback" style.





Highslide JS
Graflex rollfim cassette 6x9.


  RollFilm 120.
Folmer Graflex 6x7 cassette.

First of all, for our Speed Graphic we can choose from 6x6 or 6x9 rollfilm holders.
These holders have to be used on Graflock backs. For the tubular finder you need also the matching mask.
If you do not have an international back you can use rollfilm holders from Calumet or the like. The holders will slide in like the cut-film holders.




Highslide JS
Graflex rollfim cassette 6x9.


  RollFilm 120.

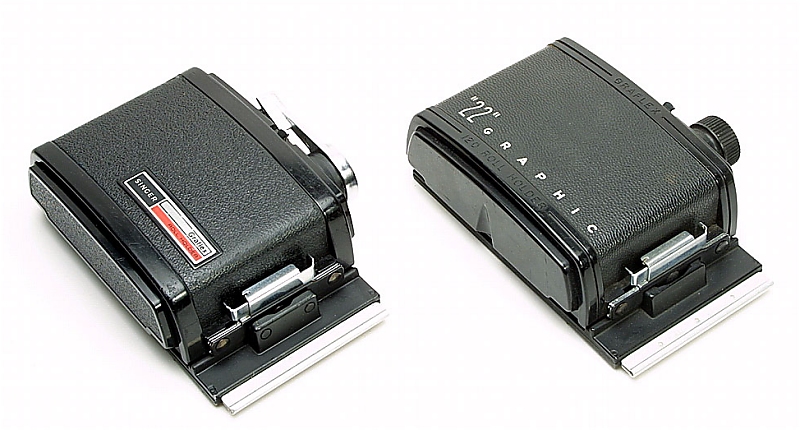

Singer Graflex 6x7 cassette.

There are quite some models available on Ebay.
Most common are the regular ones - 6x6, 6x7 and 6x9
THe other series are called RH/** made by Singer Graflex. Instead of a knob to wind the film, these holders have a yellow or red handle.



Highslide JS

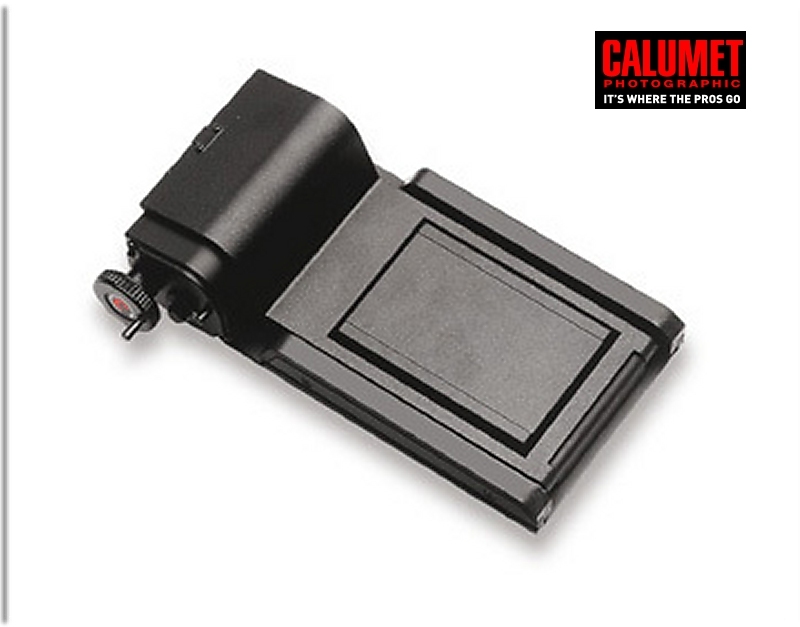

Calumet rollfim cassette 6x7.


  RollFilm 120.
6x7 Slide-in Roll Film Holder for 4x5

Roll Film holders can be divided in two groups i.e The ones that slip under the GG screen of a springback like the cut-film holders and the ones that need to be locked with the clips of the Graflock(International) back. The Calumet roll film holder is belonging to the first mentioned group.


Highslide JS

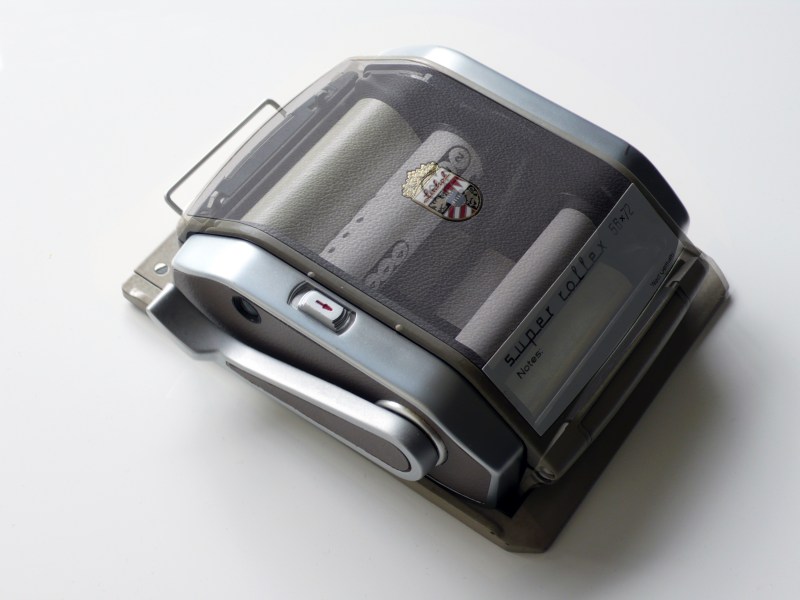

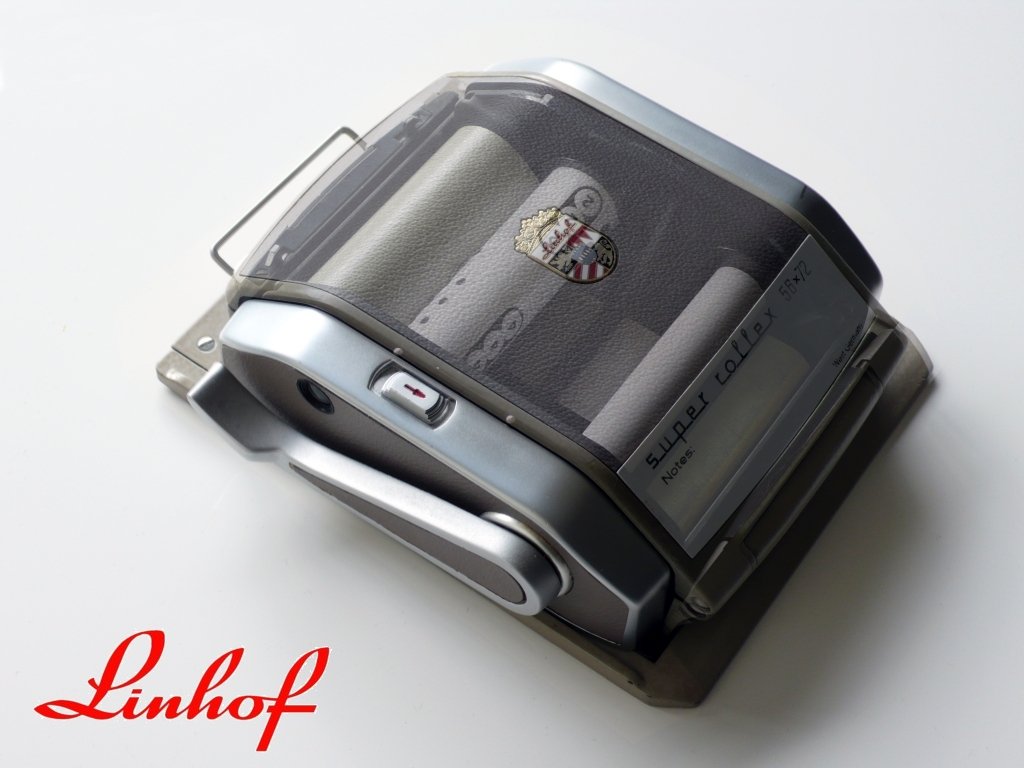

Linhof Super Rollex 6x7 ideal format (4x5)


Highslide JS
Linhof Super Rollex 6x7 ideal format (4x5)- Phantom Image (Superimposed)
RollFilm 120.
Linhof Super Rollex 6x7 ideal format (4x5

A more sophisticated (means higher price) back is available from Linhof.
The Super Rollex backs are available in 6x7 and 6x9. There is a back for 6x12 also, it is called Techno Rollex.
And then there is the Cine Rollex (56x72 only). These are made for 70mm double perforated film (Spec. 475). Very few films are available in this form:!


In case you start wondering if these transparent backs are lighttight, Yes they are...
This is a technique from the analog days and it is called: Phantom Image or Fantoom aufnahme. Two images were made on the same piece of film, differing in exposure time 1 or 2 E.V
Nowadays we can do this superimposing much easier...



Highslide JS

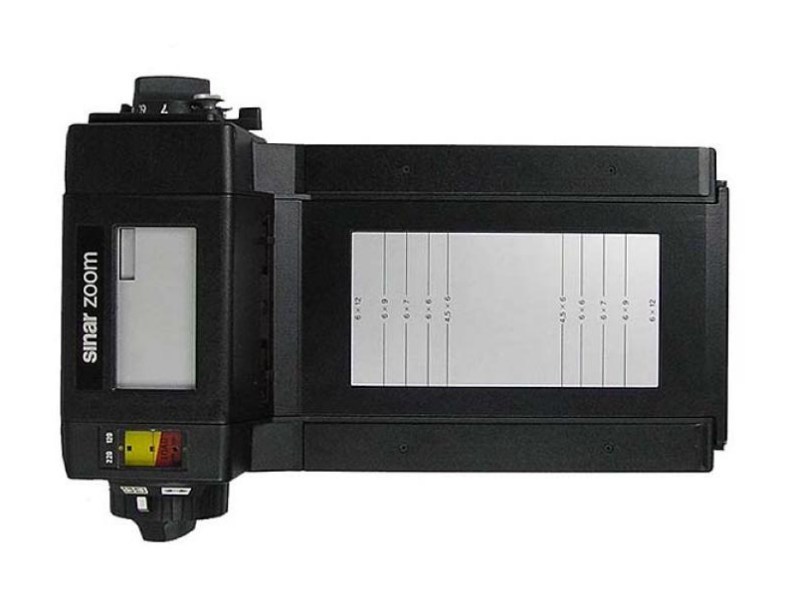

Sinar Zoom rollfilm cassette.


  RollFilm 120.
Sinar Zoom rollfilm cassette.4.5x6 - 6x6 - 6x7 - 6x9 - 6x12

Extremely versatile is the Sinar Zoom cassette.
Formats: 4,5x6 - 6x6 - 6x7 - 6x9 -6x12.
Different formats can be chosen on the same film.
Sinar also has a 67 and 69 rolfilm holder in its program. Holders are designed to accommodate all backs that can handle the regular sheetfilm cassettes.



Highslide JS

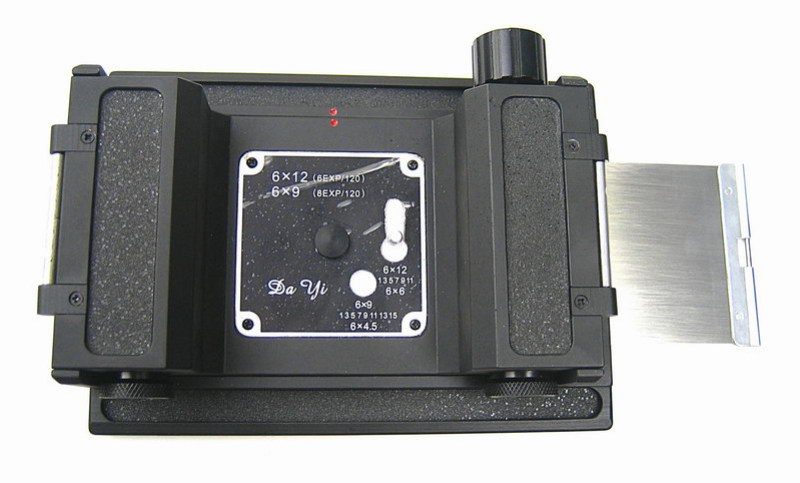

DA YI Rollfilm adapter 6x9 - 6x12


  RollFilm 120.
DA YI Rollfilm adapter 6x9 - 6x12

From China....Lately I've noticed more and more photographic goodies from China.
From China means reasonable prices compared to Sinar and Linhof, but is the quality really is up to par?? Google for DaYi to get all the info you need.



Highslide JS

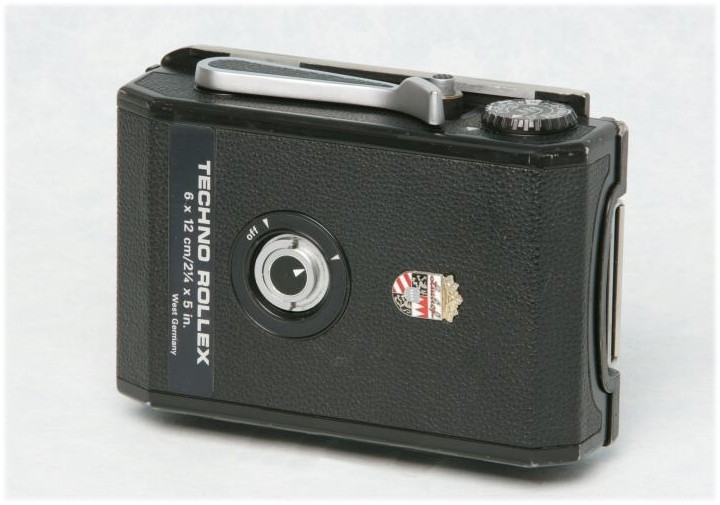

Linhof Techno Rollex - 6x12


  RollFilm 120.
Linhof - Germany

A real gadget for Linhof devotees. Hard to get at a reasonable (Graflex-budget) price. Worth looking for...In between, just cut a 4cm from your 4x5 prints.



Highslide JS

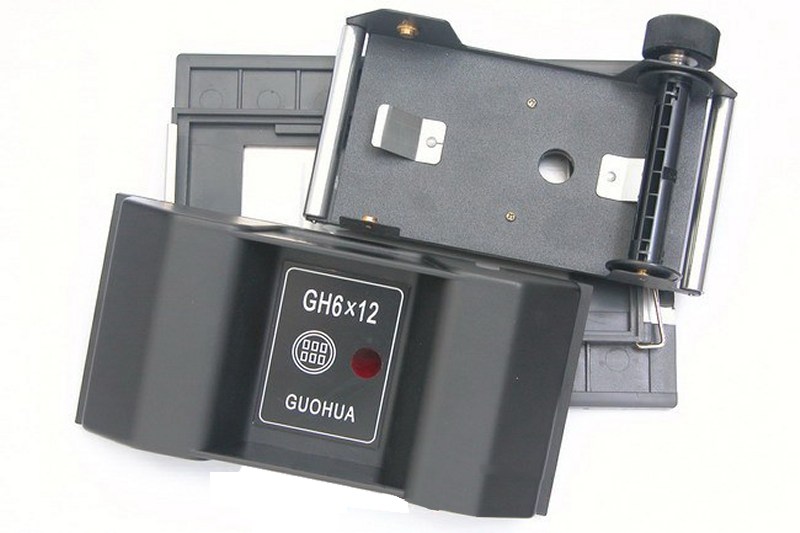

GuoHua Rollfilmadapter 6x12


  RollFilm 120.
GuoHua Rollfilmadapter 6x12

Finally this GuoHua adapter, looking very well made, reasonably priced.
Till now I could not find any user reports.

Please note there are many more brands making rollfilm adapters in various formats. Just to name a few more: ShenHao, Wista, Horseman, Canham and Alpa.
