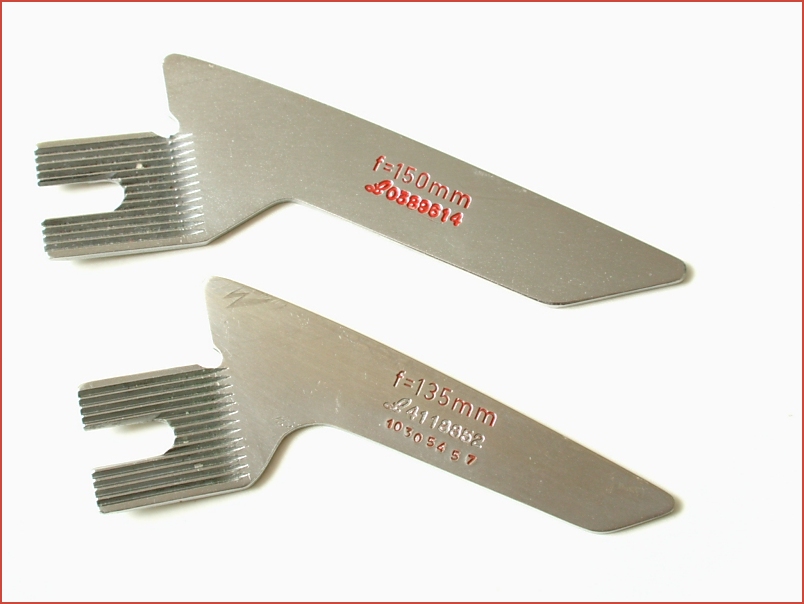

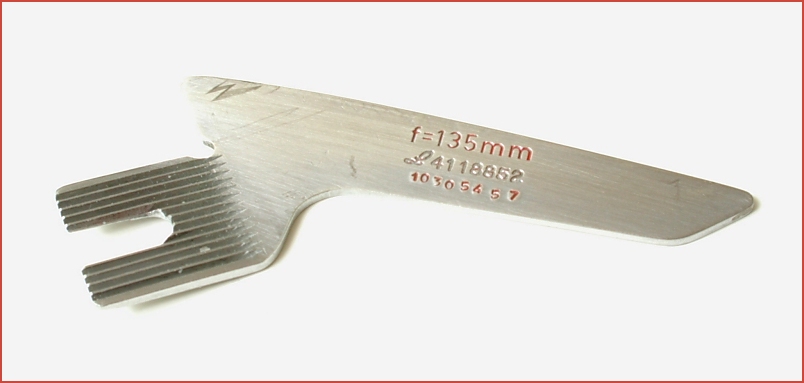

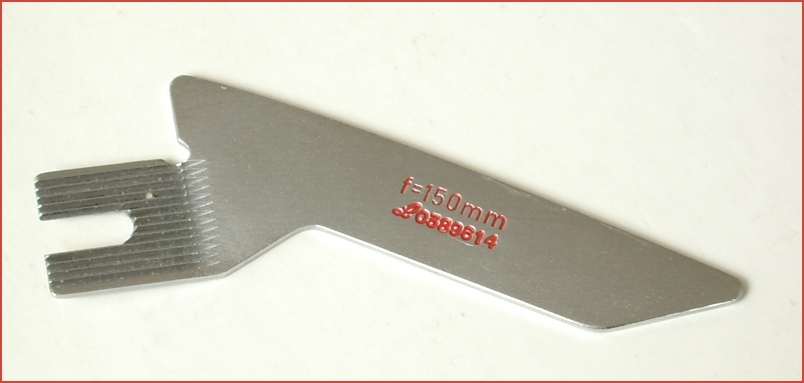

Linhof Cam 135mm   Linhof Cam 135mm top Linhof Cam 150mm   Linhof Cam 150mm top Linhof Cam 150mm - 135mm   Linhof Cam 150mm and 135mm

GRINDING CAMS Consideration: If I could get a 150 mm cam for my Super Technika, can I make it work with my 150mm Doctar?? Do I have to grind it? We'll see.... Shown is the 135mm I've got. This is the 150mm I'm looking for... Well, I bought it from Fons de Vries, it took its time... Properly posted by Fons something went terribly wrong, it took about 3 weeks before it was delivered in a heavily damaged package. Fortunately, no harm done to the cam... First checking my GG with the Doctar mounted on inf. Next using the rangefinder, focusing on several distances while rechecking the GG. The result was spot-on! No grinding necessary, all works flawless.

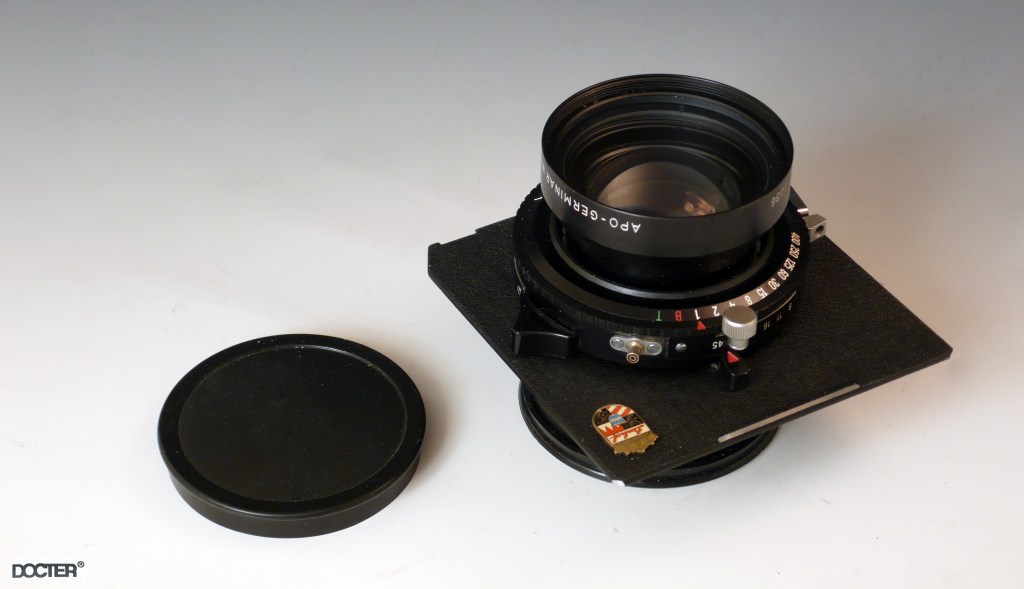

Apo Germinar W8/150 by Docter optics-Saalfeld. 8 elements in 8 groups!   Apo Germinar W8/150 by Docter Optics-Saalfeld. 8 elements in 8 groups!

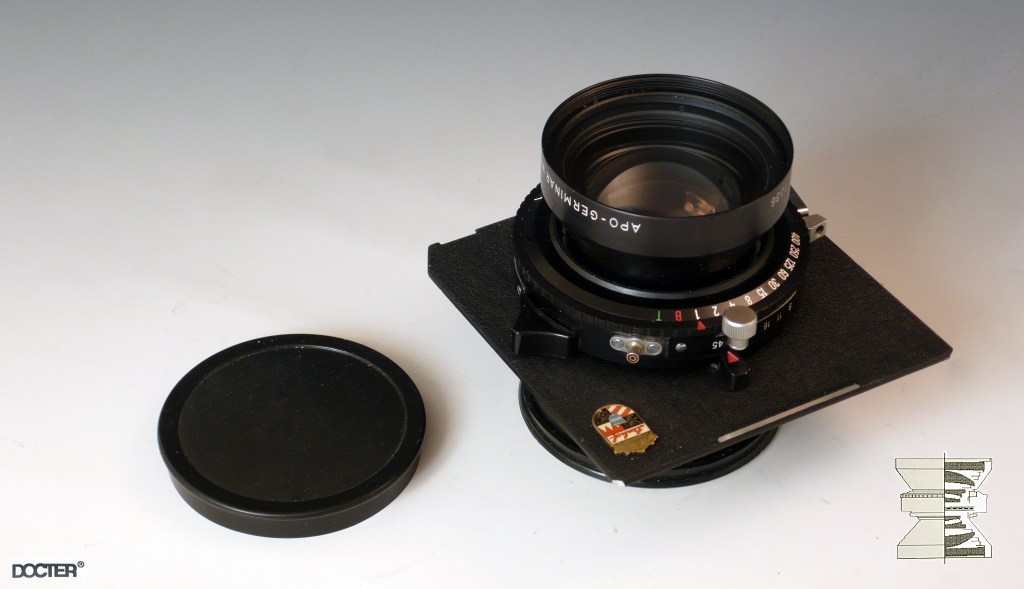

Apo Germinar W8/150 Here it is... the Apo Germinar W8/150 by Docter Optics-Saalfeld. 8 elements in 8 groups! Originally a Repro barrel plasmat and corrected for 1:1. Ours is mounted in a Copal 1 shutter. Worth to mention as this is a highly corrected lens with an image circle of 184mm. Click image to see the lens and construction. Using this one when pinpoint sharpness is required and for 1:1 when zero distortion is called for...

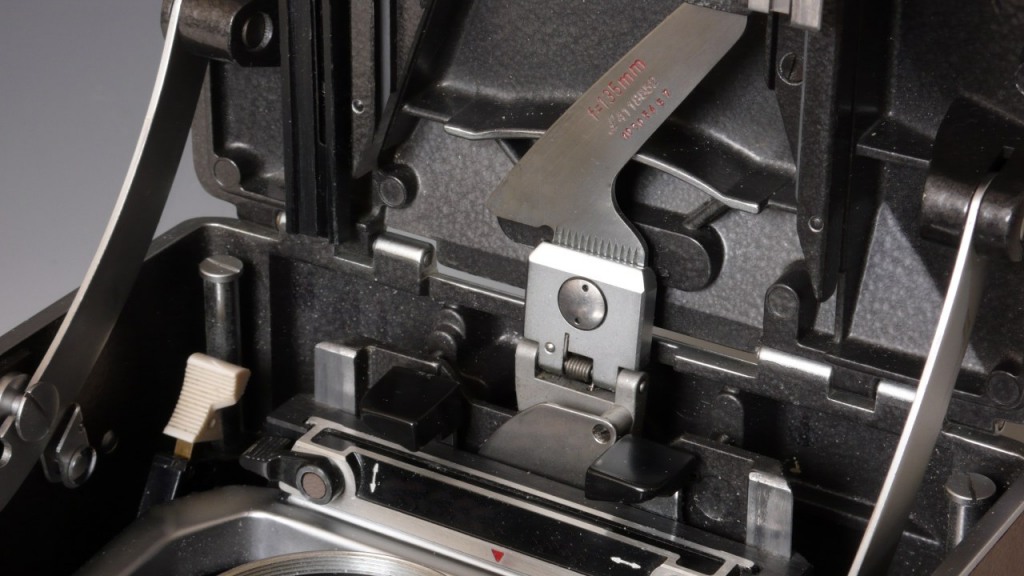

Linhof Cam 135mm in place   Linhof Cam 135mm in place

ABOUT LINHOF CAMS The IV/V/Master RF cams will physically interchange. They can be quickly recognized because they have ridged grooves where the cam is inserted into the camera body. IV cams have the serial number of the camera on the bottom of the cam AS WELL as the serial number of the lens on the top of the cam. Note that since the IV has a non standardized back, its cams will not dependably focus on the later cameras, or even on other IV's. V/Master cams look the same as the IV cams, but ONLY have the serial number of the lens engraved. These cams can be accurately interchanged between V and Master bodies using that particular lens.
