JohnDesq's unique Pinhole Camera
UNEQUALED
till today...

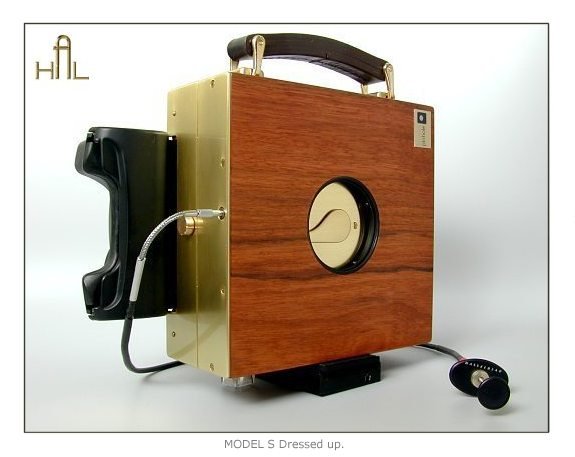

Probably the most sophisticated Pinhole Camera ever!

Based on the original HAL it was built around the international back of the Wisner TF45.
Thus permitting use of all thinkable film backs: Polaroid 545, Calumet Rollfilm adapter, Polaroid 550, Graflex Grafmatic holder and of course the regular Cut-film holders.

The camera is a special order from Casado Cameras - Barcelona. Beautifully crafted from Mongoy wood with brass shutter and matching the mahogony of the Wisner Back.
This particular camera has the following specs:

  • focal length: 65mm
  • Pinhole Size: 0.35mm
  • Aperture: f/186.
  • Angle of View: 102°43'42"
  • Exposure factor: 71.5 @ f/22
  • Filter thread: 67mm
  • Cable release socket in brass.
  • Tripod Mount 1/4
  • 19.4mm x 19.4mm x 6.8mm LxWxD without back
  • Weight:2030 gram with back mounted.
If you own a wooden Camera with international back and you want a HAL MARK S build around it, please inquire.
Suitable cameras are a.o. Wisner, Tachihara, Wista, Shen Hao, Osaka, Walker, Canham.
E-Mail

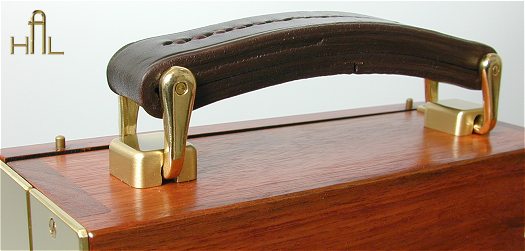

'A steady grip into Pinhole Photography...'


Detailed views...
