PARTS LIST.

S.461 © JohnDesq, Netherlands

Click on a part-number to learn name and list-number!
Double-Click anywhere will bring you at the top of this page!

Fig. and Index No. Nomenclature Part.No. Units per Assy.

Fig. 3 Exposure Meter: Weston Euro Master S.461 Form 6 --

1 Pad for stud 185754 1

1A Stud, Calculator 185753 1

1B Glass Window, Cover Special Order 1

2 Calculator assembly 185743 1

3 Nut Cover mounting 174154 2

4 Cover only, front 177812 1

5 Spring, Calculator Index 177836 1

6 Link 177814 1

7 Pin Index 177816 1

8 Housing Pointer release button 185755 1

9 Button Pointer release 185756 1

10 Nut movement mounting Index No.3 2

11 Screw, 8 B.A. x 1/4in. Hex.HD 109202 2

12 Terminal, earthing 174474 1

13 Stop Pointer 167578 2

14 Clamp Pointer 174167 1

15 Pole piece assembly 167264 1

16 Screw 10 B.A (Core) 150321 1

17 Lockwasher, 10 B.A. (Core) 153367 1

18 Bracket, movement 174172 1

19 Screw, Adjusting core, 200 T.P.I 167262 1

20 Washer, adjusting screw 177394 1

21 Spring adjusting screw 177312 1

22 Moving element assembly 22/S.461-6 SUB# 1

23 Core assembly 174171 1

24 Locknut, 8 B.A. Scale fixing 150178 2

25 Lockwasher, 8 B.A. Scale fixing 103854 1

26 Scale fixed 185741(27-36) 1

27 Scale Sliding 185739(27-36) 1

28 Washer, Moving slide guide 179497 1

29 Stud, scale mounting 174150 2

30 Washer, scale bearing 174152 2

31 Clamp, release 174151 1

32 Washer, scale bearing See Index No.30 2

33 Screw, 6 B.A. C/SK.HD 150146 2

34 Cover, contact cell 185738 1

* 35 Cell, English blue 174956 # 1
36 Insulating washer 162958 1

37 Contact Spring assy. 174475 1

38 Plate, Baffle 174147 1

39 Window, cell 162959 1

40 Spring, pointer lock 174159 1

41 Screw, 8 B.A. Hex. 177824 2

42 Cover Assembly, Back 44/S.461-6 1

43 Stud Mechanism, mounting 174153 2

44 Baffle, Multiplier, assembly. 185735 1

45 Spring, Baffle. 174157 1

46 Spring, left shifting. 174156 1

47 Spring, right shifting. 174155 1

48 Cord, carrying 185729 1

49 Loop, carrying cord. 167225 1

50 Base drilled. 185733 1

51 Masking washer, Cell Window. 179160 1

* All parts marked with asterisk form Base Assembly 185732
# Color code must be given with Part number.

Back

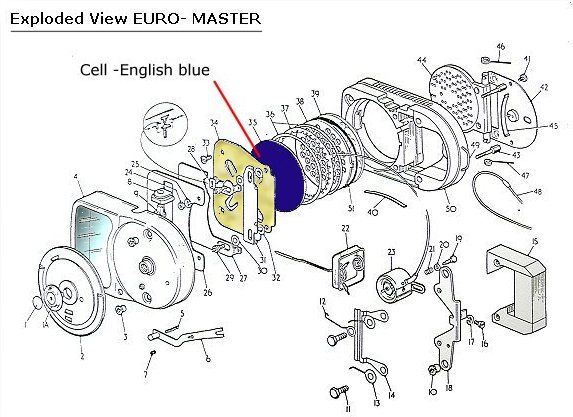

Exploded View

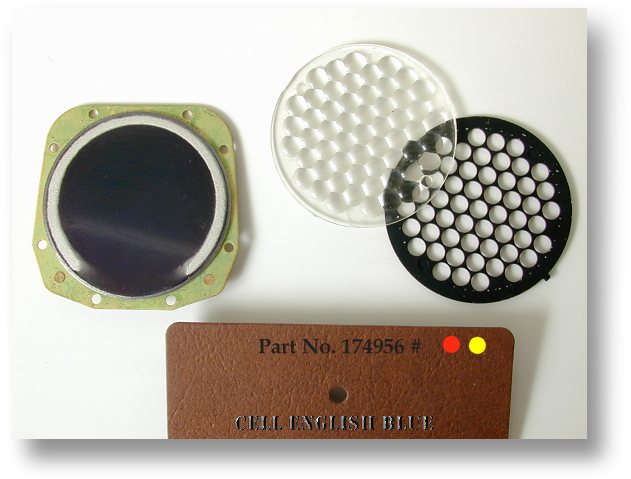

Shown Cell and its assembly components.No. 34/35/38/39
