7 steps to correct exposure...

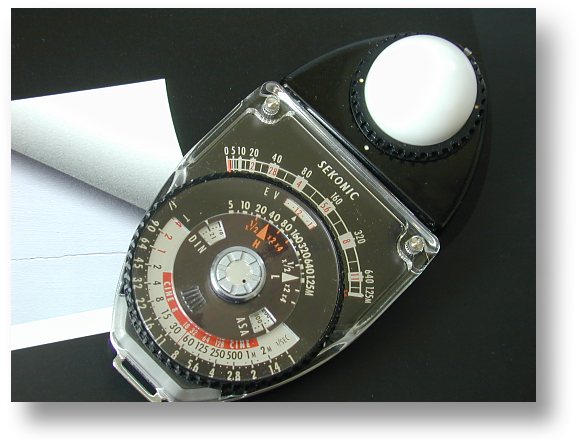

Models: L-28c, L-28C2, L398

#1   Adjust the Asa Index setting with the Asa speed of your film or your personal E.I #2   Measure by pointing the Photosphere towards the Camera #3   Read the values in red (footcandle marks 4-1M or 5-1.25M) where the needle halted. #4a    Slide In: Move the red mark labeled "H" on the scale opposite the found value. #4b    Slide Out: Move the white mark labeled "L" on the scale opposite the found value. NOTE:    At this point all usable shutterspeed / f-numbers are aligned and coupled. #5    Read the desired Shutterspeed/aperture combination. #6    Synch your Camera accordingly... #7    Ready for exposure! Note: This meter attains its accuracy because its readings are based solely on INCIDENT LIGHT (The light that falls upon the subject)  ||| Speed reading
