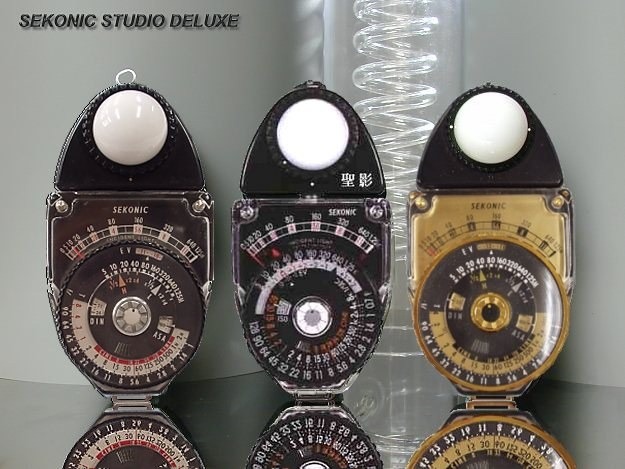

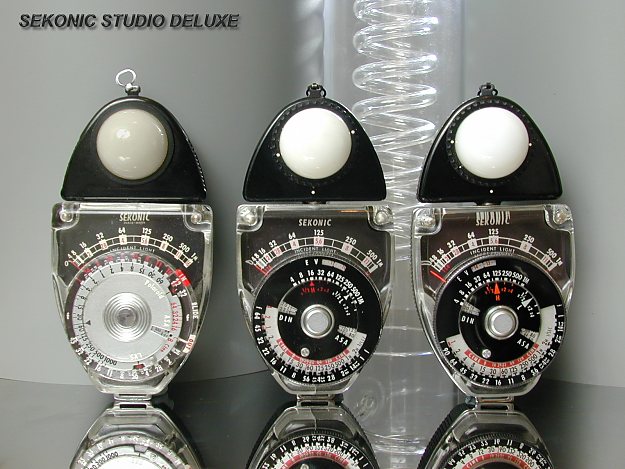

the Sekonic family...by John D.esq

Missing in the Collection:
L-398 GOLD and L-398M.
L-398 will be added soon, the other two depends on the Seminar: "Financing My Meter Collection"
Sponsors are Welcome. Typical Specs:
Sekonic S

Incident Light scale: 3.2 -1000 (slide out)
foot-candles: 3.2 -1000 x 30 (slide in)
ASA Range: .1 - 1000
Shutter Speeds: 140 seconds - 1/1200
F-Stops: f1.4 - f45
Ev Values: 1 - 20
Polaroid: 1 - 8
Cine: 8 - 64 fps

Typical Specs:
Types L-28/L-28c2

Measuring system Incident light type/reflected light measurement
Measuring range (ISO 100) EV4 ~ EV17 (for incident light)EV9 ~ EV17 (for reflected light)
Film speed ISO 6 ~ 12000
f/stop f/1.0 ~ f/90
Shutter speed 60 sec. ~ 1/2000 sec.
Movie scale 8 fps. ~ 128 fps.
Weight 190 grams - 6.7 oz.
Dimensions 112 x 58 x 34mm - 4.4 x 2.3 x 1.3"
Set of 11 direct reading slides sold separately.
Typical Specs:
Types L-398M

Measuring system Incident light type, reflected light measurement is also possible
Measuring range (ISO 100) EV4 ~ EV17 (for incident light)EV9 ~ EV17 (for reflected light)
Film speed ISO 6 ~ 12000
f/stop f/1.0 ~ f/90
Shutter speed 60 sec. ~ 1/8000 sec.
Movie scale 8 fps. ~ 128 fps.
Weight 190 grams - 6.7 oz.
Dimensions 112 x 58 x 34mm - 4.4 x 2.3 x 1.3"
Set of 11 direct reading slides sold separately.
